HEXCEL STYLE 7544 Plain Weave
18 OUNCES PER SQUARE YARD

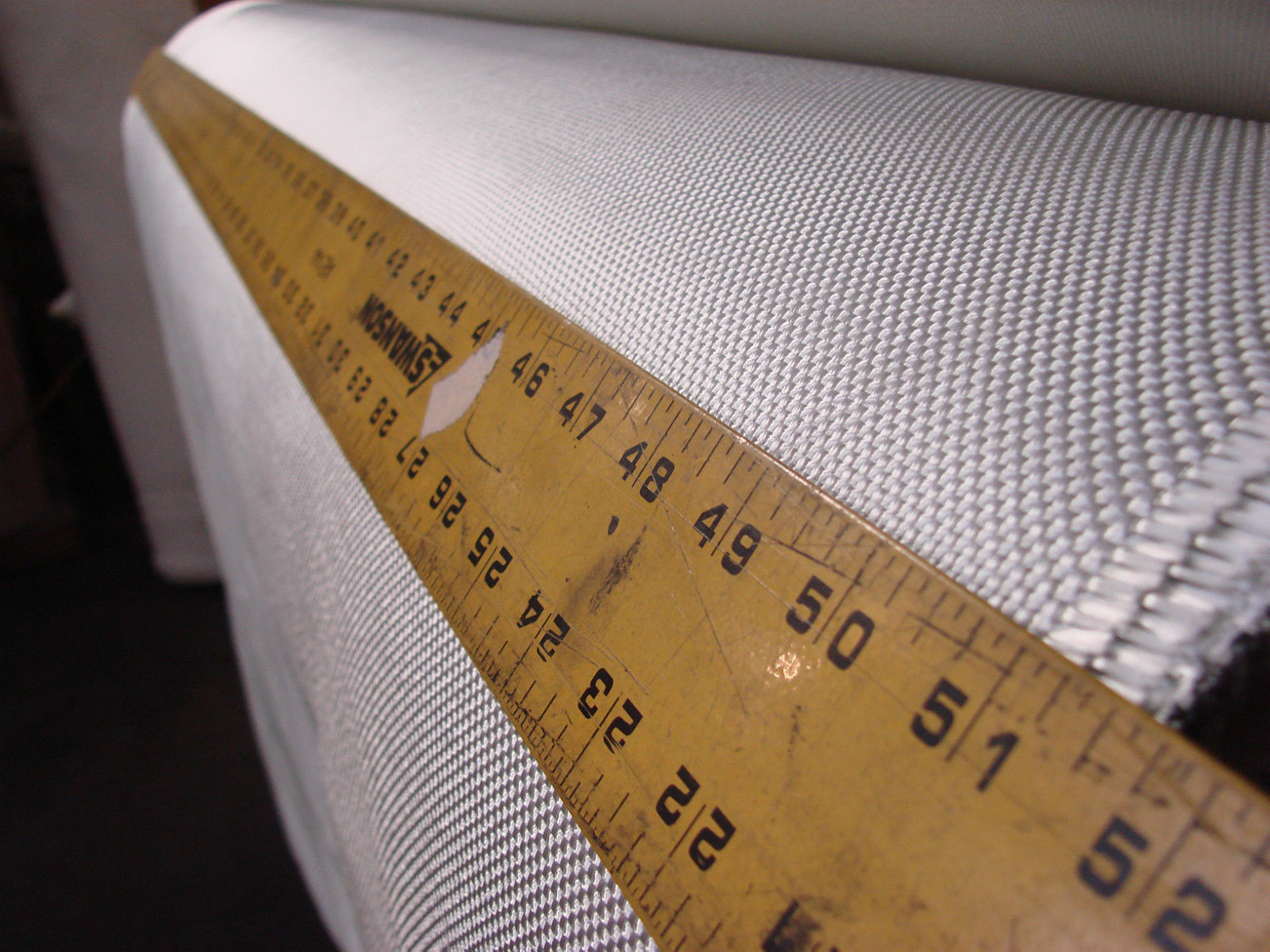

50+ INCHES WIDE
To order please call 877-403-8008 and receive a 5% discount off eBay pricing.
Or visit our eBay Store, PolymerProducts.
Available by the Yard
Description
Epoxy Compatible Medium Weight Fabric
Use for R/C modeling, surfboards, finishing surface ply to reduce heavy weave print-thru.
This fabric weave style is one of the most widely used weave style used in the composites industry. It is one of the easiest fabrics to use and it is ideal for laying up cowls, fuselages, ducts and other contoured surfaces with minimal distortions.
Construction and Specifications Data
| HexForce™ 7544 | Style 7544 | US Units | SI units |
| Type OF Yarns | Warp Yarn | ECG 37 1/4 | EC9 134 x2 |
| Fill Yarn | ECG 37 1/2 | EC9 134 x4 | |
| Fabric Weight Dry | Density | 18oz/yd2 | 610 g/m2 |
| Weave Style | 2 End Plain | ||
| Construction | |||
| Nominal ConstructionFill Count | Warp Count | 28 in14 in | 11.02/cm5.51/cm |
| Fabric Thickness | 19.1 mils | 0.49 mm | |
| Break Strength | WarpFilling | 700 ft-lb/inch700 ft-lb/inch | |
| Volan Treated | Epoxy Resin Compatible | Polyester ResinCompatible |
