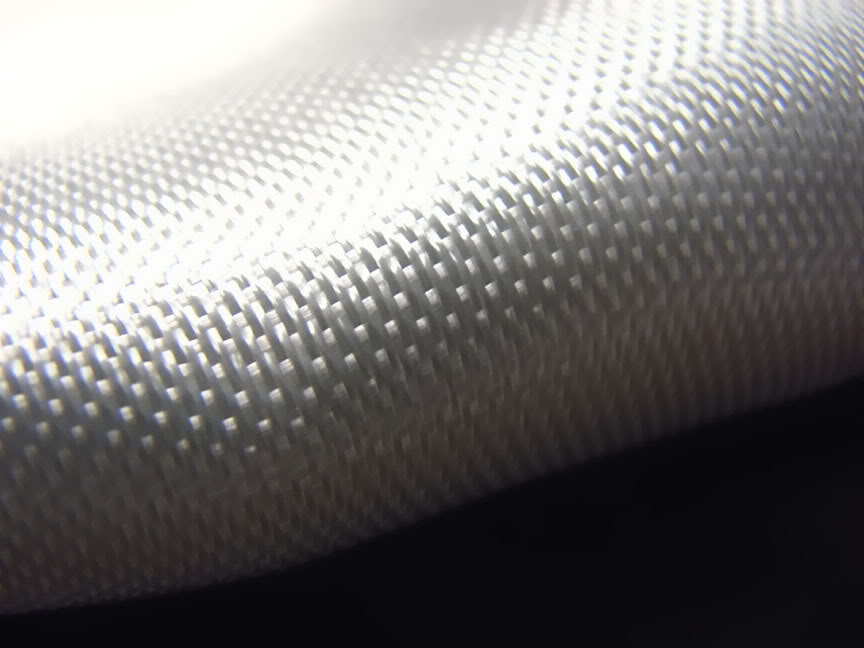

Fiberglass Hexcel 1581
8 Harness Satin Weave
8.9 oz. Per Yard
Or visit our eBay Store, PolymerProducts.
Available Lengths:
1 Yard
Description
This fabric style is one of the most widely used weave style used in the composites industry. This style fabric is one of the easiest fabrics to use and it is ideal for laying up cowls, fuselages, ducts and other contoured surfaces with minimal distortions. This fabric measures 46 inches for end to end providing 44 inches of usable width without stretching.
Markets
- Aeronautics/Aerospace
- Marine Construction
- Automotive
- General Fabrication
- Applications
- Aircraft Advanced Composites
The eight harness satin weave Is one of the most widely used weave style used in the composites industry due to its ease of use and weave style’s structural integrity. This style fabric is one of the easiest fabrics to use and it is ideal for laying up toolings that are curve, contoured and sharp angled. It is also well suited for obliqued and obtuse angles (angels more than 90° but less than 180°), high definition surfaces and for flat surface that requires minimal fabric weave print through.
This fabric weave can be cut into narrower widths with ease using an X-acto bladed with minimal fraying, distortions or wrinkling.

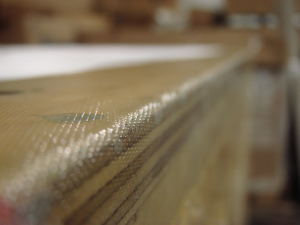

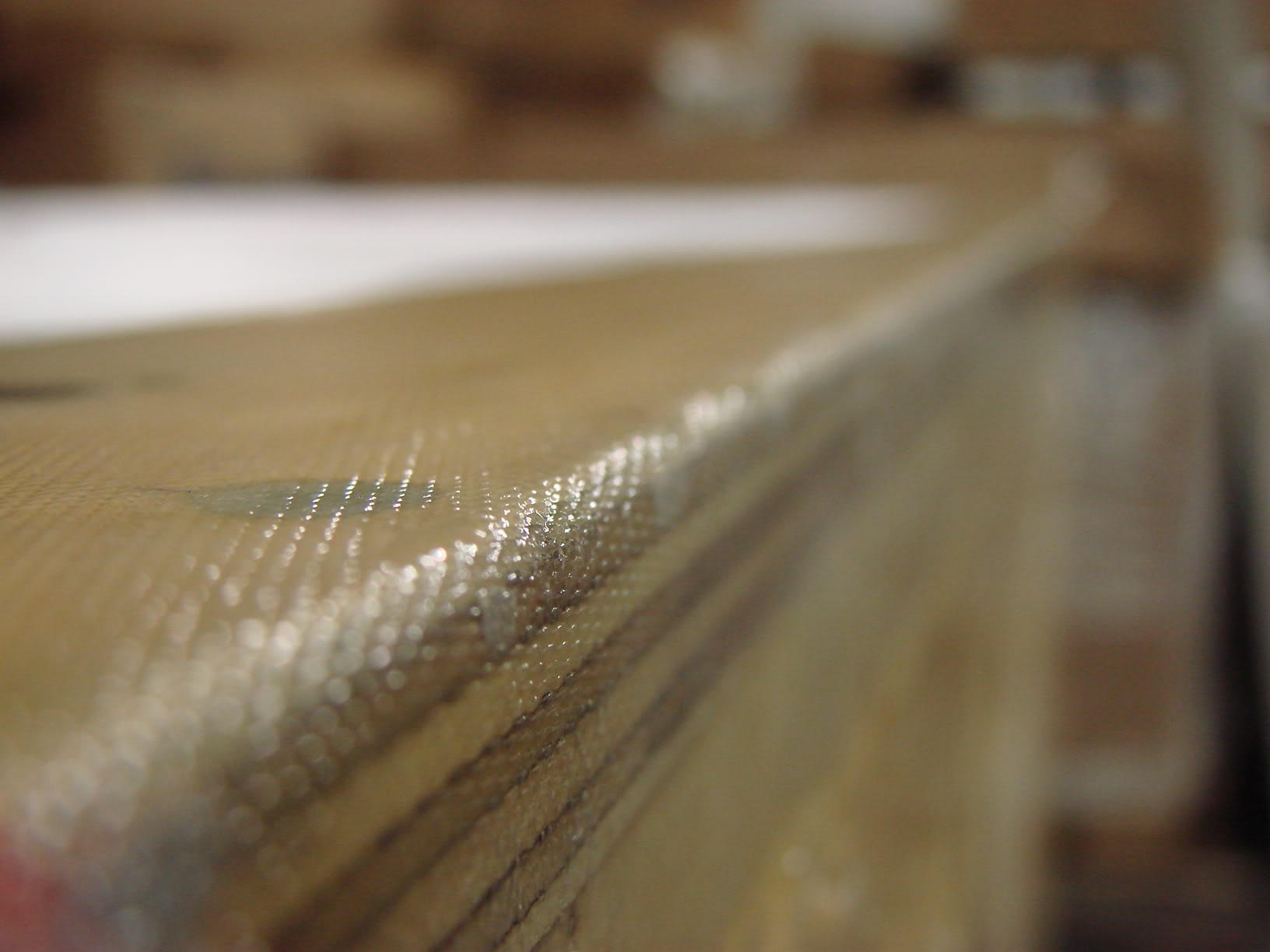

Note the pliability of the fabric as it is used as a 90° angle corner with excellent conformity and fabric drape.
Physical and Mechanical Properties
Fabric Data and Construction and Specifications
| STYLE 1581 | US System | SI Units |
| Warp Count | 57/in | 22.44/cm |
| Fill Count | 54/in | 21.25/cm |
| Warp Yarn: Type of Yarns | ECG 150 1/2 | EC9 33×2 |
| Fill Yarn: Type of Yarns | ECG 150 1/2 | EC9 33×2 |
| Fabric Weight, Dry | 8.79 oz/yd2 | 298 g/m2 |
| Fabric Thickness | 8.50 mil | 0.22 mm |
| Breaking Strength Warp | 450 lbf/in | 78.8 N/mm |
| Breaking Strength Filling | 380 lbf/in | 66.3 N/mm |
VOLAN F3 TREATED
Heat cleaned fabric is saturated in a methacrylate chromic chloride solution, cured, and washed to remove any soluble salts.
Both F-16 and F-3 are Volan type finishes with F-3 being a highest chrome content version.
Used with polyesters, phenolics, and epoxies, F-16 and F-3 fabrics make a light green laminate.
