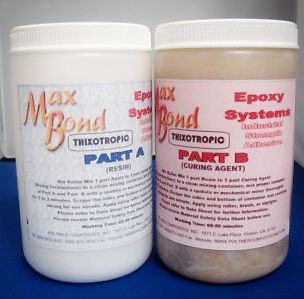

High Strength Epoxy Adhesive
Non-Sag Thixotropic
Easily spreads and will not flow at rest
For ordering and inquiries please call 877-403-8008.
Or visit our eBay Store.
PolymerProducts on eBay
Available Kit Sizes:
1/2 Gallon Kit
1 Gallon Kit
2 Gallon Kit
10 Gallon Kit
Description
Conforms To Hundreds of Aerospace/Military/Naval Materials Specifications
MIL-A-8623 T1
MS-511
MMM-134 Type1 and Type 2
OS-9923A
Boeing BMS-5-29
NASA Requirements For Low Outgassing Polymers
(<1% CVCM, collected volatile condensable material )
Read More About Outgassing
CONFORMS TO CODE OF FEDERAL REGULATIONS
FDA CFR TITLE 21 175.300 FOR DIRECT/INDIRECT FOOD CONTACT ADHESIVE
Read the Code of Federal Regulations
Tested For Aerospace Application Under NASA Low Out Gassing Specifications of less than 1% CVCM
Can be used as an adhesive or coating for Direct and indirect Food Contact under the FDA 21 CFR 175.105
Non-Critical Mix Ratio, Equal Parts by Volume, Brush, Roller Coat, Trowel Applied
Non-Sag (Thixotropic) For vertical or stay in place bonding
Excellent for fiberglass patching, honeycomb core bonding and edge closeout
Excellent Impact Resistance
Excellent Balance of Strength and Flexibility
Excellent Water/Salt Water Resistant for Marine/Aero Applications
Low Shrinkage, Wide range of service temperature
Physical Properties
| Mixed Density | 1.10 gm/cc |
| Form and Color | Thixotropic Gel |
| Part A – Resin | White Thixotropic Liquid |
| Part B – Curing Agent | Amber Gel |
| Viscosity Mixed | 135,624 cPs @ 77°F (25ºC) |
| Mix Ratio | Equal parts by volume or weight |
| Working Time (200 gram mass) | 85 Minutes @ 77°F (25ºC) |
| Peak Exotherm (200 gram mass) | 160°F |
| Cure Time | 24 Hrs. Minimum |
| Accelerated Cure | 2 Hours Room TemperaturePlus 1 hour 212oF |
Mechanical Properties
| Hardness | 85 ± 5 Shore D |
| Tee-Peel Strength | 4 Lbs. per inch Width |
| Compressive Strength | 15,800 psi @ 77°F (25ºC) |
| Tensile Shear Strength | 3,700 psi @ 77°F (25ºC) |
| 2,200 psi @ -112°F (-80ºC) | |
| 1,450 psi @ 212°F (100ºC) | |
| Elongation Maximum Yield | 2.3% |
| Tensile Strength | 8,800 psi |
| Service Temperature | -67°F to 250°F |
| Thin Film Set Time | 120 minutes |
Tensile Shear Strength and Peel Adhesion of MAX BOND THIXOTROPIC to other substrates
| Substrate | Surface Treatment | Cure Condition | Shear Strength@ 77⁰F | Shear Strength@-319⁰F | T-peelPer InchWidth @ 77⁰F | T-peelPer InchWidth @319⁰F |
| Teflon -TFE | Naphthalene Wipe | 48 Hrs, @ 77⁰F | 2300 | 1800 | 10 | 5 |
| Teflon -TFE | Naphthalene Wipe | 1 Hr. @ 250⁰F | 2800 | 3200 | 10 | 5 |
| Teflon – FEP | Naphthalene Wipe | 48 Hrs, @ 77⁰F | 12 | 4 | ||
| Teflon – FEP | Naphthalene Wipe | 1 Hr. @ 250⁰F | 3000 | 5300 | 15 | 15 |
| KE L- F | Solvent Wipe | 1 Hr. @ 250⁰F | 2600 | 5000 | 10 | 17 |
| Tedlar | Solvent Wipe | 48 Hrs, @ 77⁰F | 2300 | 1600 | 5 | 2 |
| Nylon FM63 | Solvent Wipe | 48 Hrs, @ 77⁰F | 1000 | 700 | ||
| Zytel 61 | 1500 | 48 Hrs, @ 77⁰F | 1500 | 700 | ||
| Zytel 61 | Solvent Wipe | 48 Hrs, @ 77⁰F | 1200 | 800 | 1 | |
| Chloro-Butyl Rubber | Solvent Wipe | 48 Hrs, @ 77⁰F | 320 | 2300 | 5 | 5 |
| Viton A-HY | Solvent Wipe | 1 Hr. @ 250⁰F | 1400 | 4800 | 19 | 7 |
| Adiprene C | Solvent Wipe | 1 Hr. @ 250⁰F | 2600 | 3800 | 15 | 10 |
| Thiokol FA | Solvent Wipe | 1 Hr. @ 250⁰F | 130 | 1300 | 7 | 2 |
| Hypalon 40 | Solvent Wipe | 1 Hr. @ 250⁰F | 2800 | 4400 | 15 | 4 |
| Copper Foil | Dilute Nitric Acid Etch | 48 Hrs, @ 77⁰F | 1400 | 1000 | 2 | 5 |
| Lead Foil | Dilute Nitric Acid Etch | 48 Hrs, @ 77⁰F | 1700 | 700 | 5 | 1 |
| Tin Foil | Dilute Nitric Acid Etch | 48 Hrs, @ 77⁰F | 2400 | 2200 | 4 | 3 |
| Cadmium Foil | Dilute Nitric Acid | 48 Hrs, @ 77⁰F | 1500 | 900 | 1 | 1 |
Electrical Properties
| Property | Test Method | Results |
| Dielectric Constant60 Cycles – RT1000 Cycles – RT | ASTM-D-159-47-T | 3.243.21 |
| Volume Resistivity | ASTM-D-257-252T | 1.25 x 1014 ohms-cm |
| Arc Resistance | ASTM-D-47T | 78 seconds |
| Power Factor60 Cycles – RT1000 Cycles – RT | ASTM-D-150-47T | 0.00870.0106 |
| Dielectric Strength | ASTM-D-149-44 | 460 to 500 volts/mil |
| Loss Factor60 Cycles – RT1000 Cycles – RT | ASTM-D-150-47T | 0.03370.0341 |
Chemical Resistance Test – 10 Day Soak Test @ 77°F (25°C)
| Test Solvent | % Change in weight |
| Distilled Water | 1.23 |
| Sulfuric Acid 30% | 1.9 |
| Nitric Acid | 3.8 |
| Toluene | 3.7 |
| Sodium Hydroxide | 10.00 |
| Anti-Freeze | No Effect |
| Motor Oil soak | No Effect |
Viscosity Comparison Chart
| MATERIAL | VISCOSITY (centipoises) |
| Water @ 70° F | 1-5 |
| Blood or Kerosene | 10 |
| Anti-Freeze or Ethylene Glycol | 15 |
| Motor Oil SAE 10 or Corn Syrup | 50-100 |
| Motor Oil SAE 30 or Maple Syrup | 150-200 |
| Motor Oil SAE 40 or Castor Oil | 250-500 |
| Motor Oil SAE 60 or Glycerin | 1,000-2,000 |
| Corn Syrup or Honey | 2,000-3,000 |
| Blackstrap Molasses | 5,000-10,000 |
| Hershey Chocolate Syrup | 10,000-25,000 |
| Heinz Ketchup or French’s Mustard | 50,000-70,000 THIXOTROPIC |
| Tomato Paste or Peanut Butter | 150,000-200,000 THIXOTROPIC |
| Crisco Shortening or Lard | 1,000,000-2,000,000 |
| Caulking Compound | 5,000,000-10,000,000 |
| Window Putty | 100,000,000 |
