Available Kit Sizes:
DESCRIPTION

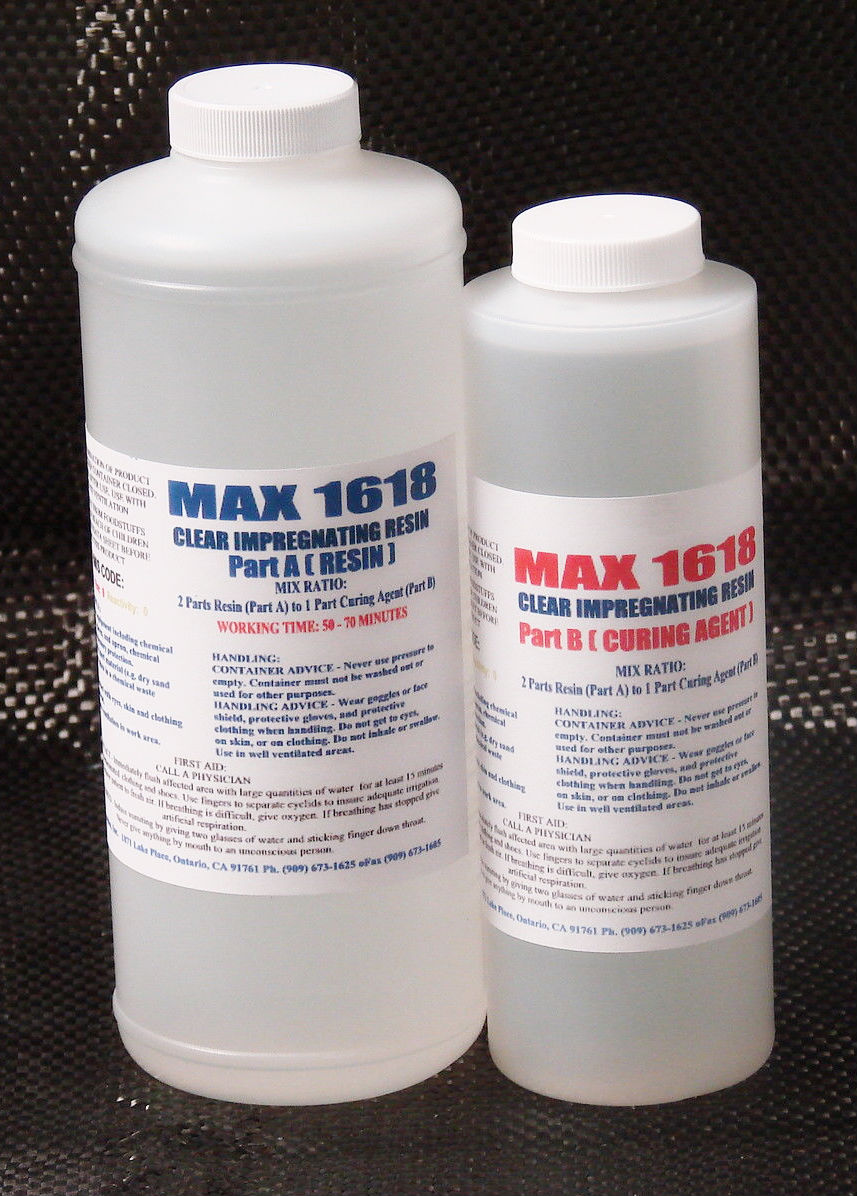

MAX 1618 A/B is our newest ultra-clear resin system engineered by our R&D laboratories that specifically addresses the performance aspects of absolute crystal clarity and resistance to yellowing from sunlight exposure while demonstrating high mechanical performance suitable for structural composites fabrication.
MAX 1618 A/B is our lowest viscosity resin formulation which makes it suitable for adding fillers and powders. It is also suitable for many bonding and impregnating applications where its low viscosity yields excellent wetting and resin saturation.
MAX 1618 is an excellent resin system for wood, metals, stone and pottery products and for general composite fabrication for fiberglass, carbon fiber, aramid and other composite fabrication fabrics.
Physical and Mechanical Properties
| Density | 1.10 g/cc +/- .02 grams per cubic centimeter0.98 +/- .05 grams per cubic centimeter1.09.+/-.03 grams per cubic centimeter | Part APart BMixed | |
| Pounds per Gallon Mixed | 9.07 Pounds Per Gallon | ||
| Form and Color | PART APART BMIXEDCured specimen 50 grams Mass | Clear LiquidClear LiquidClear LiquidClear Transparent | |
| Viscosity | PART A =PART B =MIXED = | 980 to 1040 cPs @ 25ºC300 to 310 cPs @ 25ºC377 cPs @ 25ºC | |
| Mix Ratio | 100 Parts “B”to 50 Parts “A” By Weight Or 2:1 By VolumeUse a digital scale and proportion by weight instead of volumetric measurement especially when mixing less than 100 grams | ||
| Working Time | 30 Minutes @ 25ºC (300 gram mass) | ||
| Peak Exotherm Temperature | 174ºC (300 gram concentrated mass) after 50 minutes | ||
| Handle Time | 6 – 8 Hours Set to Touch, 10 Hours Green Strength | ||
| Maximum Operating Temperature | 95ºC | ||
| Full Cure Time | 36 Hrs. Minimum @ 25ºC | ||
| Accelerated Cure Schedule | 4 hours at 25ºC or until dry to the touch plus 30 Minutes @ 150ºF | ||
PHYSICAL PROPERTIES
| Hardness | Application |
| 30 Shore A | Art gum erasers |
| 35 Shore A | Rubber bands |
| 40 Shore A | Can tester pads |
| 50 Shore A | Rubber stamps |
| 55 Shore A | Pencil erasers |
| 60 Shore A | Screen wiper blades |
| 65 Shore A | Automotive tires |
| 70 Shore A | Shoe heels |
| 75 Shore A | Abrasive handling pads |
| 80 Shore A | Shoe soles |
| 85 Shore A | Tap washers |
| 90 Shore A | Typewriter rollers |
| 95 Shore A | Fork lift solid tires |
| 60 Shore D | Golf ball |
| 70 Shore D | Metal forming wiper dies |
| 80 Shore D | Paper-making rolls |
